How to Install Oracle RAC 10gR4 ASM Patch

Information about How to Install Oracle RAC 10gR4 ASM Patch

This document will describe how to Patch CRS to 10gR4 on Oracle RAC. You must follow the Prerequisite Information below in order.

Document Creator

Todd Walters 06/03/2009

Requirements

All these Sections must be complete before installing ASM Patch on RAC Servers

Pre Installation Guide

1. How to Install Linux Oracle RAC Virtual Server

2. Prepare Linux Virtual Servers for Oracle RAC

3. Prepare Linux Physical Servers for Oracle RAC

4. How To Configure Oracle RAC OCR and Voting Disks

Oracle Software Installation Guide

1. Prepare Linux Environment for GUI Access for Oracle Installation

2. Linux Oracle RAC Installation Guide

3. How to Install Oracle 10gR2 CRS

4. How to Install Oracle 10gR2 ASM

5. How to Install Oracle 10gR2 DB Home

6. How to Install Oracle 10gR4 CRS Patch

7. How to Install Oracle 10gR4 ASM Patch

8. How to Install Oracle 10gR4 DB Home Patch

9. How to Configure Oracle ASM Disks for RAC Virtual Servers

o For Physical see How to Configure ASM Disks for Physical Servers guide.

10. How to Install Oracle 10gR4 ASM Instance

11. How to Install Oracle 10gR4 Database Instance

• ASM10.2.0.4 Patch Software Location: home/source/Oracle/software/rdbms/patchset/10.2.0.4/linux_64bit/Disk1

How to Install Oracle 10gR4 ASM Patch

1. Login with VNC Viewer to Node 1 as Oracle User
2. Change directory to ASM 10.2.0.4 Patch Software Location
3. Launch OUI ASM Patch Installer GUI
• > ./runInstaller
4. At the ASM Welcome Screen click Next
5. At the ASM Patch Specify Home Details screen, change to the ASM Location and click Next

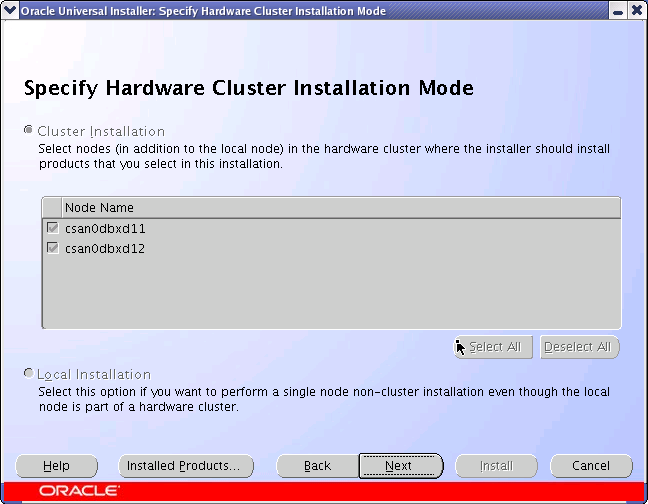

6. At the Specify Hardware Cluster Installation Mode screen, verify that all nodes are shown and then click Next

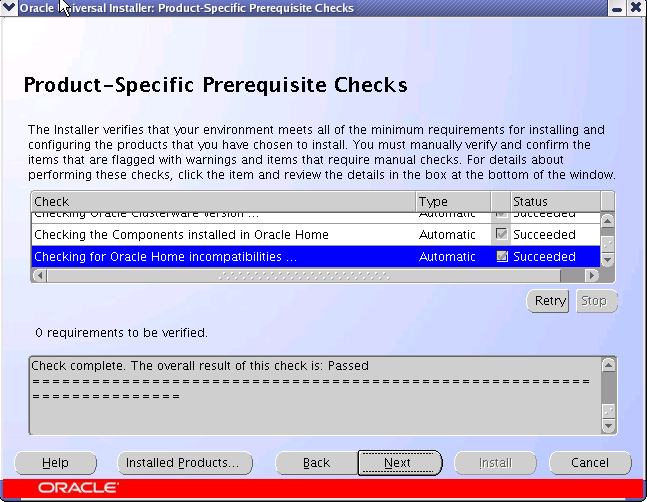

7. At the ASM Product-Specific Prerequisite Checks screen, make sure the Overall Result is Passed Then click Next to continue.

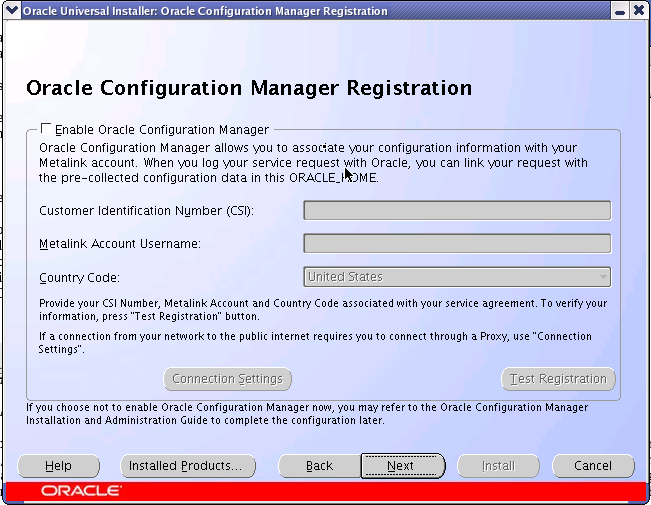

8. At the ASM-Patch Oracle Configuration Manager Registration screen, click Next to continue.

9. At the ASM-Patch Summary screen, click Next to continue.

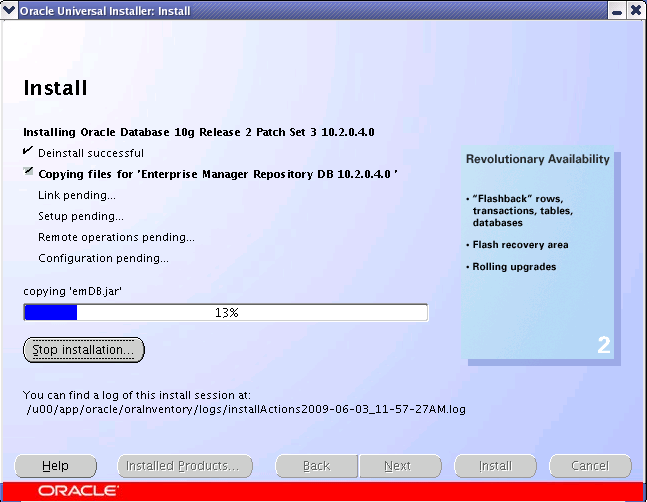

10. ASM Patch Install Progress

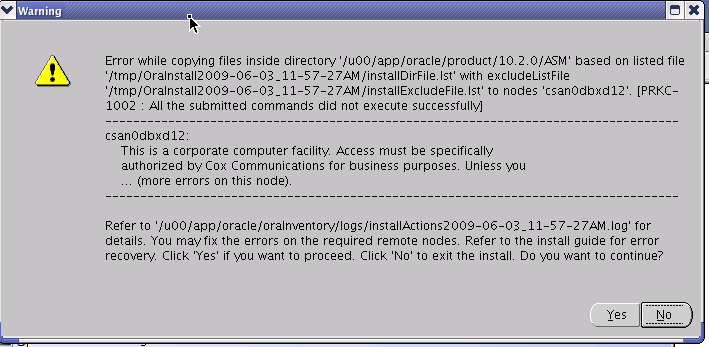

11. At the ASM Patch Configuration Warning click Yes to continue. You will be prompted a 2nd time with the Warning, Click Yes to continue again.

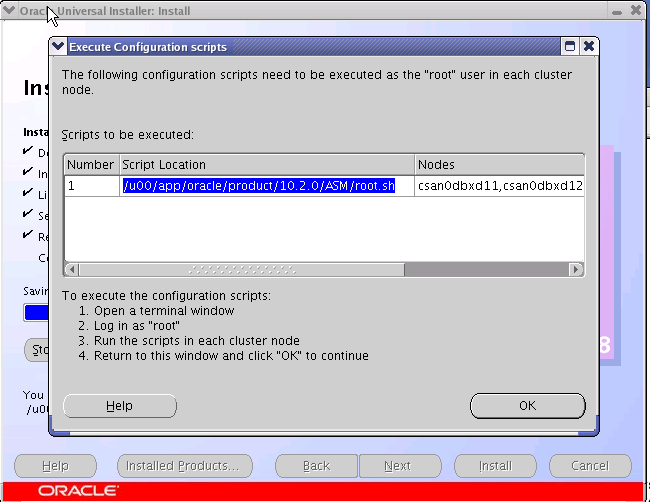

12. At the Execute Configuration Scripts screen, run the scripts as requested on all nodes, then click OK to continue.



    [root@srv0dbxd11 ~]# /u00/app/oracle/product/10.2.0/ASM/root.sh
    Running Oracle10 root.sh script...
    The following environment variables are set as:
        ORACLE_OWNER= oracle
        ORACLE_HOME=  /u00/app/oracle/product/10.2.0/ASM
    Enter the full pathname of the local bin directory: [/usr/local/bin]:
    The file "dbhome" already exists in /usr/local/bin.  Overwrite it? (y/n)
    [n]: y
       Copying dbhome to /usr/local/bin ...
    The file "oraenv" already exists in /usr/local/bin.  Overwrite it? (y/n)
    [n]: y
       Copying oraenv to /usr/local/bin ...
    The file "coraenv" already exists in /usr/local/bin.  Overwrite it? (y/n)
    [n]: y
       Copying coraenv to /usr/local/bin ...
    Entries will be added to the /etc/oratab file as needed by
    Database Configuration Assistant when a database is created
    Finished running generic part of root.sh script.
    Now product-specific root actions will be performed.

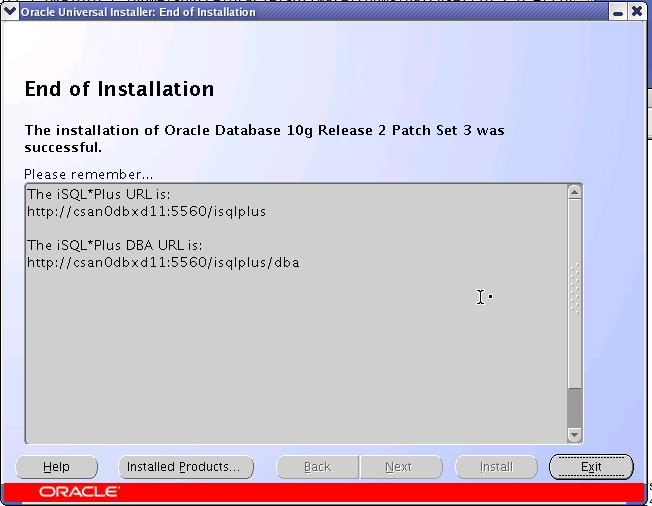

13. At the End of Installation screen, Click Exit then click Yes to complete.

14. When ASM Patching is complete, return to Linux Oracle RAC Installation Guide to begin next sections, How to Install Oracle 10gR4 DB Home Patch Guide
